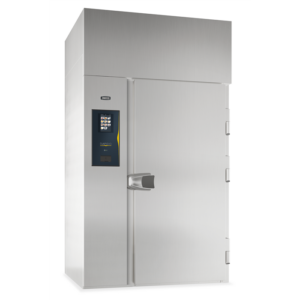

Zanussi 110545 ZBFA61WE blast chiller freezer 30/30kg, 6 GN 1/1 or 600x400mm (12 levels pitch 30mm) for Tower execution with touch screen control.

Electric
Supply voltage: 380-415 V/3N ph/50 Hz
Electrical power max.: 2.7 kW
Heating power: 1 kW
Circuit breaker required
Installation:
Clearance: 5 cm on sides and back.
Please see and follow detailed installation instructions provided with the unit
Capacity:
Max load capacity: 30 kg
Trays type: 600×400; GN 1/1; Ice Cream
Product Information (EN17032 – Commission Regulation EU 2015/1095)
Energy consumption, cycle (chilling): 0.0921 kWh/kg
Chilling Cycle Time (+65°C to +10°C): 74 min
Full load capacity (chilling): 30 kg
Energy consumption, cycle (freezing): 0.2253 kWh/kg
Freezing Cycle Time (+65°C to -18°C): 264 min
Full load capacity (freezing): 30 kg
Test performed in a test room at 30°C to chill/ freeze (+10°C/-18°C) a full load of 40mm deep trays filled with mashed potatoes evenly distributed up to a height of 35 mm at starting temperature between 65° and 80°C within 120/270min.
Water:
Drain line size: 1″1/2
Pressure, bar min: 0
Water consumption: 0 lt/hr
Refrigeration Data
Built-in Compressor and Refrigeration Unit
Refrigerant type: R452A
GWP Index: 2141
Refrigeration power: 2970 W
Refrigeration power at evaporation temperature: -20 °C
Refrigerant weight: 1150 g
Condenser cooling type: AIR
Key Information:
Door hinges: Right Side
External dimensions, Width: 897 mm
External dimensions, Depth: 937 mm
External dimensions, Height: 1020 mm
