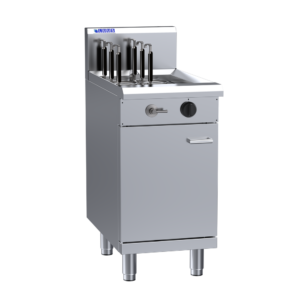

Noodle Cooker
63 mj jet burner with pilot, FFD and piezo ignition
Adjustable thermostat accurately controls water temp
Water purifying overflow system to remove excess starch
High temperature cut-out safety mechanism
Marine grade 1.5mm 316 stainless steel tank
35 litre tank capacity
Tank filter insert 0.9mm 304 stainless steel
Drain back basket stand 1.2mm 304 stainless steel
Rear laundry arm with controls located on front panel
Includes 2 Basket, 2 Soup Pot Noodle Cooker 304 perforated stainless steel
Safety release tank drainage valve at bottom of unit
Overall Construction
Heavy duty construction
Constructed 0.9mm 304 stainless steel door
Fiberfrax Durablanket insulation on both sides of tank
Welded 1.2mm 304 stainless steel front hob
Front and side panels 0.9mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Includes rear castors and stainless steel legs (front)
Dimensions
450mm x 800mm x 1100mm H
Working height 900mm
Weight 74kg
Packed dimensions 640mm x 860mm x 1260mm H
Packed weight 94kg
Connections
Gas 3/4” BSP male
Gas 180mm from right, 70mm from rear, 150mm from floor
Supplied with gas regulator (specify Nat or LP on order)
Water inlet 1/2” copper tube
Water 60mm from left, 70 mm from rear, 80mm from floor
Drain 1” BSP male
Drain 225mm from left, 210mm from front, 220mm floor
Cleaning & Servicing
Easy access to all parts & components from front
Removable baskets and inserts
Options/Accessories
Additional noodle baskets
Joining caps
RH and LH side shields
